Power Battery PACK Automatic Production Line (drum type)

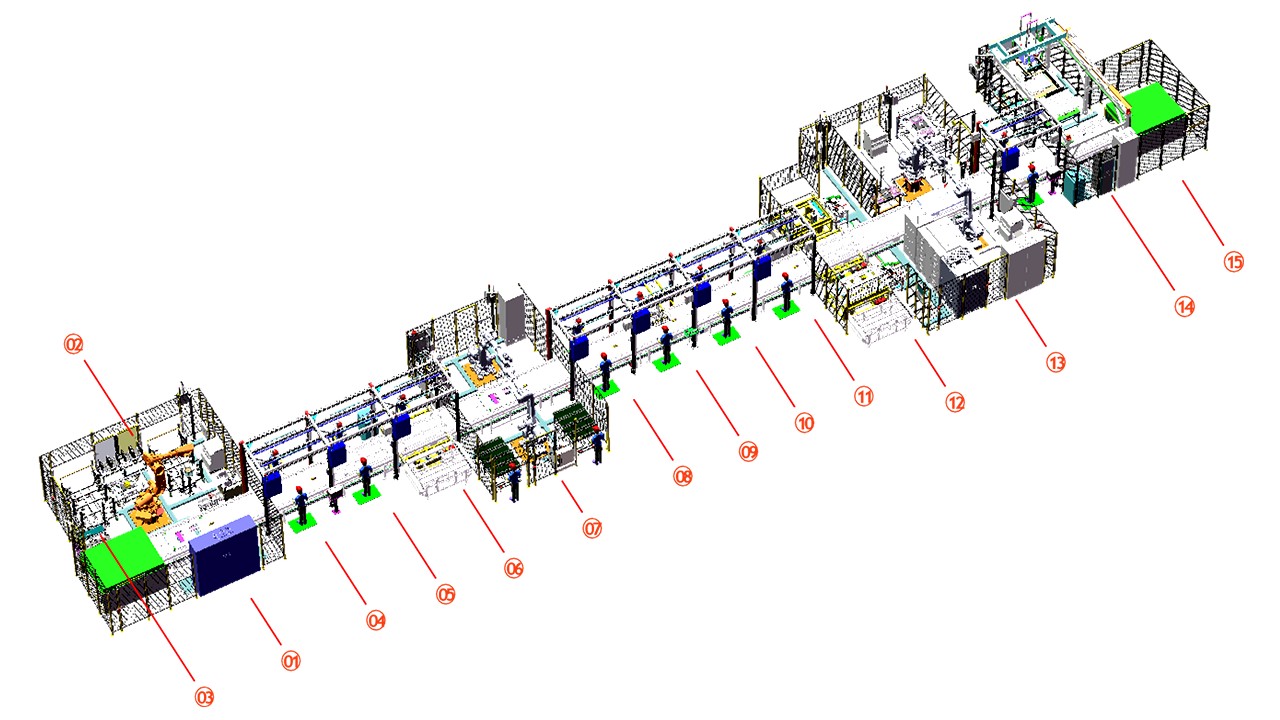

Power battery PACK automatic production line (drum type) 01 the lower box body automatically goes online 02 Water-cooled plate automatically goes online 03 Automatic pasting of insulation pad 04 high and low voltage installation 05 Install beam and collecting harness 06 air tightness test 07 module automatically enters the box 08 module pre-tightening 09 module and copper bar are tightened 10 BMS installation 11 installation of sealing strip 12 EOL, capacity test 13 The upper cover is automatically installed and tightened 14 air tightness test 15 battery pack automatically goes offline.
Products description

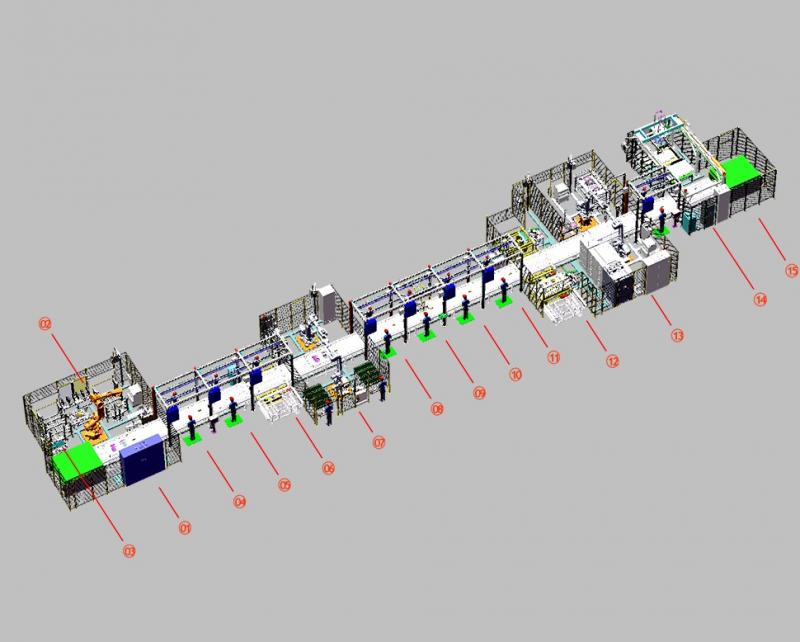

Power battery PACK automatic production line (drum type)


01 the lower box body automatically goes online.

02 Water-cooled plate automatically goes online.

03 Automatic pasting of insulation pad.

04 high and low voltage installation.

05 Install beam and collecting harness.

06 air tightness test.

07 module automatically enters the box.

08 module pre-tightening.

09 module and copper bar are tightened.

10 BMS installation.

11 installation of sealing strip.

12 EOL, capacity test.

13 The upper cover is automatically installed and tightened.

14 air tightness test.

15 battery pack automatically goes offline.

PARAMETER FORM

Basic parameters

parameter value

Equipment size

 40*15*25m

single line capacity

≥7.5JPH

Good yield of production line

≥99%

Field movement rate of production line

≥95%


How to order an automatic machine for your product?

Share us the picture in different angles of your product.

Share us the drawing of your product.

You will get the automatic quotation with price,delivery time,efficiency etc.
