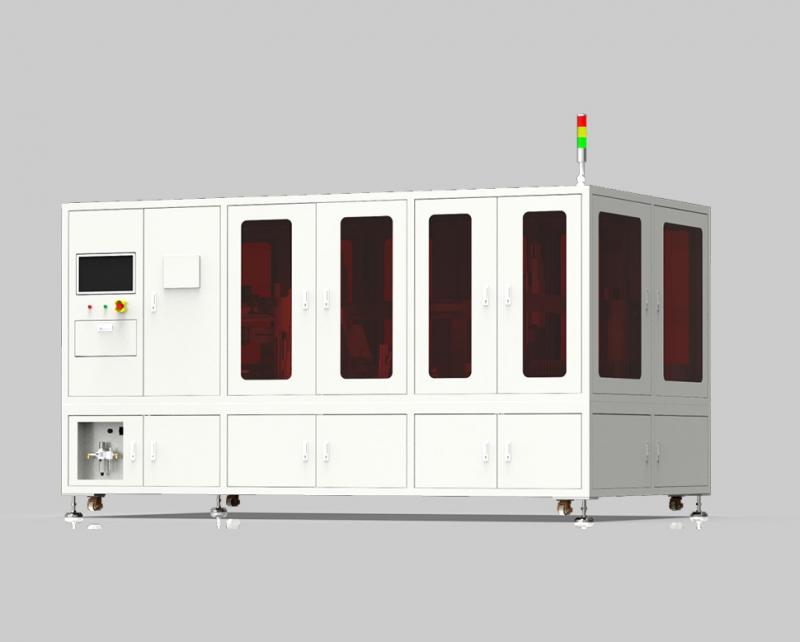

Diolame coating machine

Features

• Fully automatic loading and unloading.
• Real-time monitoring of data, self-developed software can deliver data with customer MES system.
• Realize different processes of battery U-shaped pack and ring pack.

Standard configuration

PARAMETER FORM

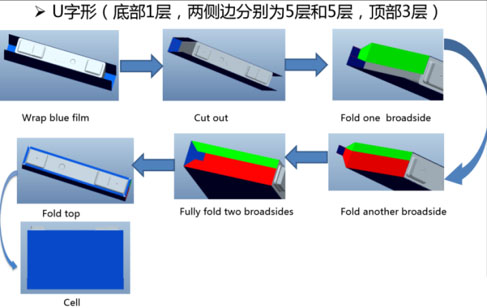

Schematic diagram of high-speed 24ppm film coating process

• In the coating station, increase the battery push into the buffer position, decompose the action of the push battery into the coating mechanism, push the battery mechanism into a double layer, push the battery to the buffer position on the bottom layer, push the battery into the film on the upper layer, and make two sets of coatings Module, complete 5 seconds to pack a battery.
• The withstand voltage test was updated from the previous double station to a 4-layer laminated structure, laying flat, and 2 sets of manipulators each clamped 2 batteries at a time to pick and place, and completed the withstand voltage test of 4 batteries in 10 seconds.

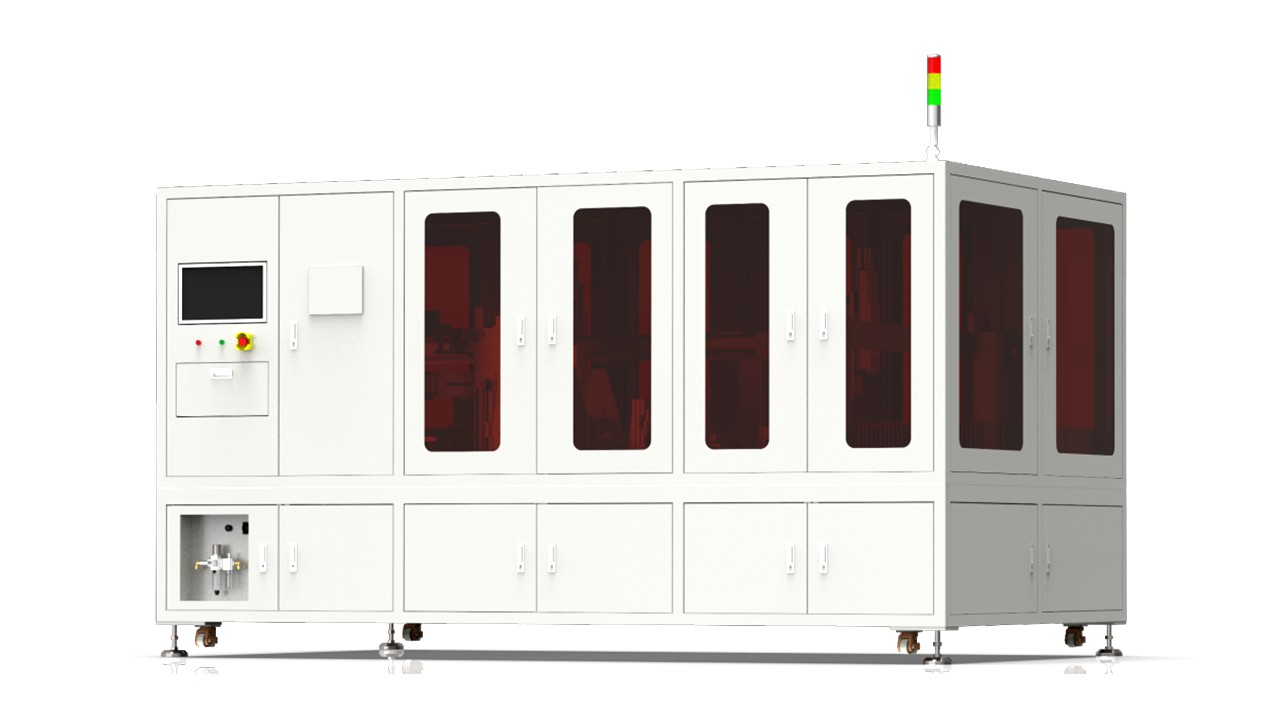

MACHINE SHOW

How to order an automatic machine for your product?

Share us the picture in different angles of your product.

Share us the drawing of your product.
