EOL Testing Machine

EOL testing machine Features Realize the full-automatic test of module internal resistance, open-circuit voltage, harness on/off, CMC test, equipotential test, total voltage, total internal resistance, series voltage, insulation and withstand voltage test of a module on a pallet. All test results are exchanged with MES through upper-level software, so as to realize data control in the production process, match the production capacity and meet the production process requirements of the production line.
Inquiry now
Products description

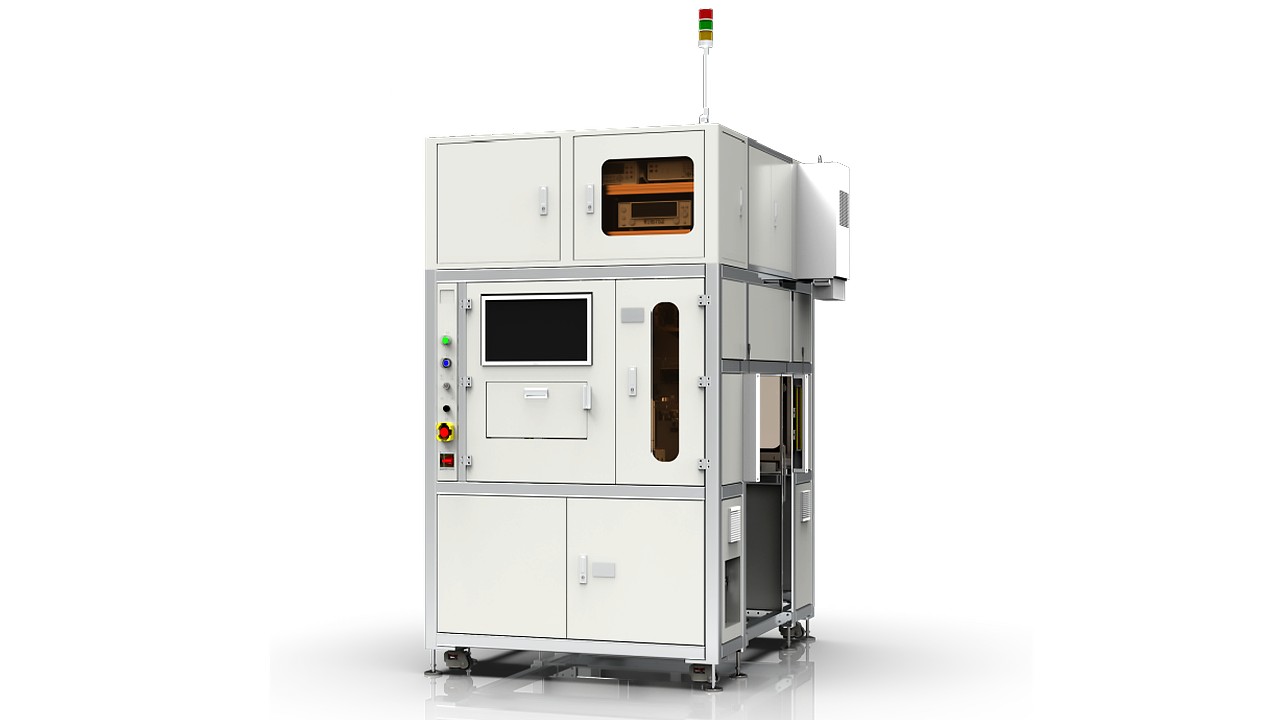

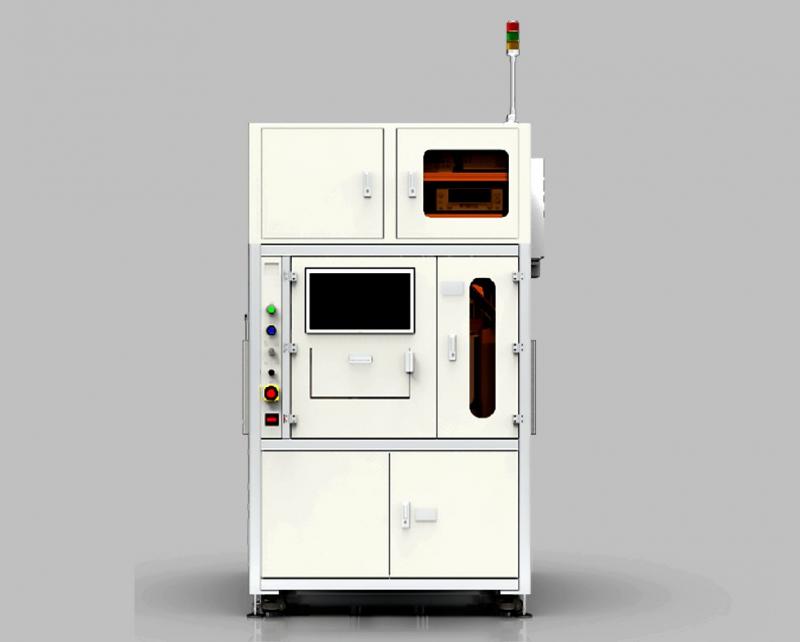

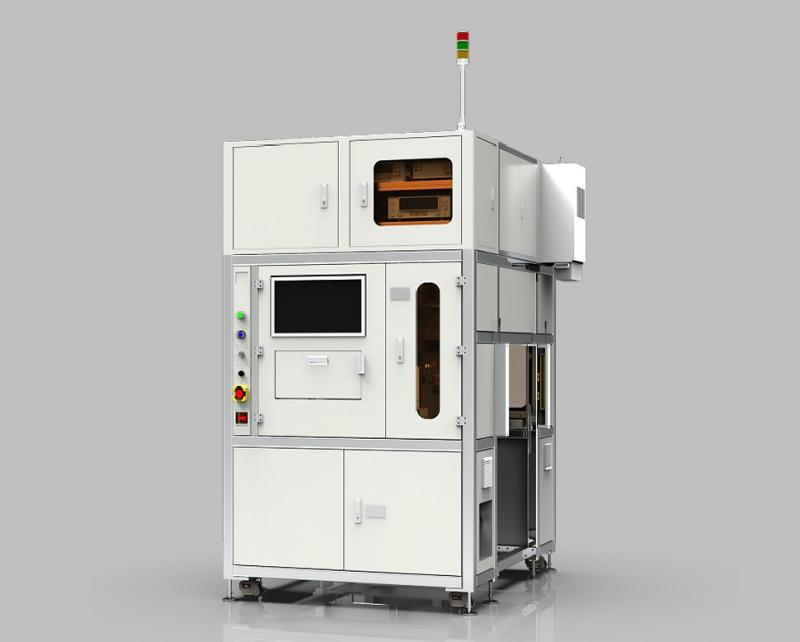

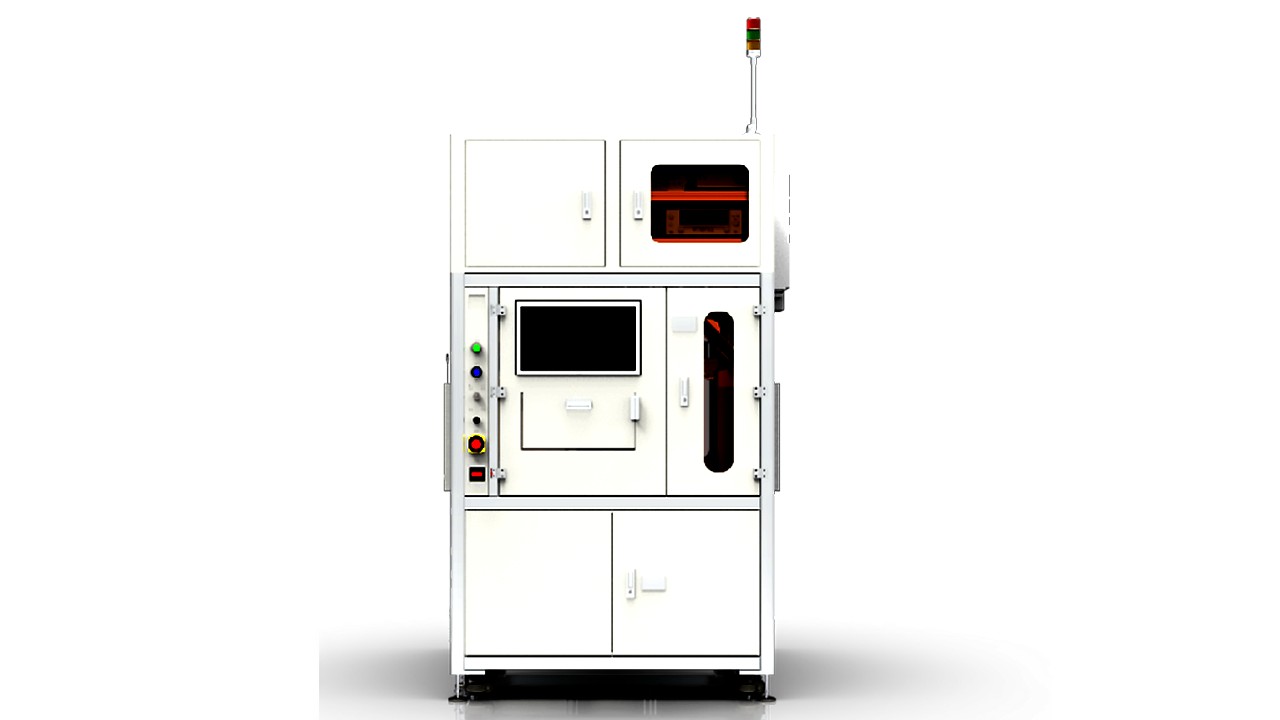

EOL testing machine

Features

Realize the full-automatic test of module internal resistance, open-circuit voltage, harness on/off, CMC test, equipotential test, total voltage, total internal resistance, series voltage, insulation and withstand voltage test of a module on a pallet. All test results are exchanged with MES through upper-level software, so as to realize data control in the production process, match the production capacity and meet the production process requirements of the production line.

Standard configuration

  • EOL& equipotential &CMC test position.

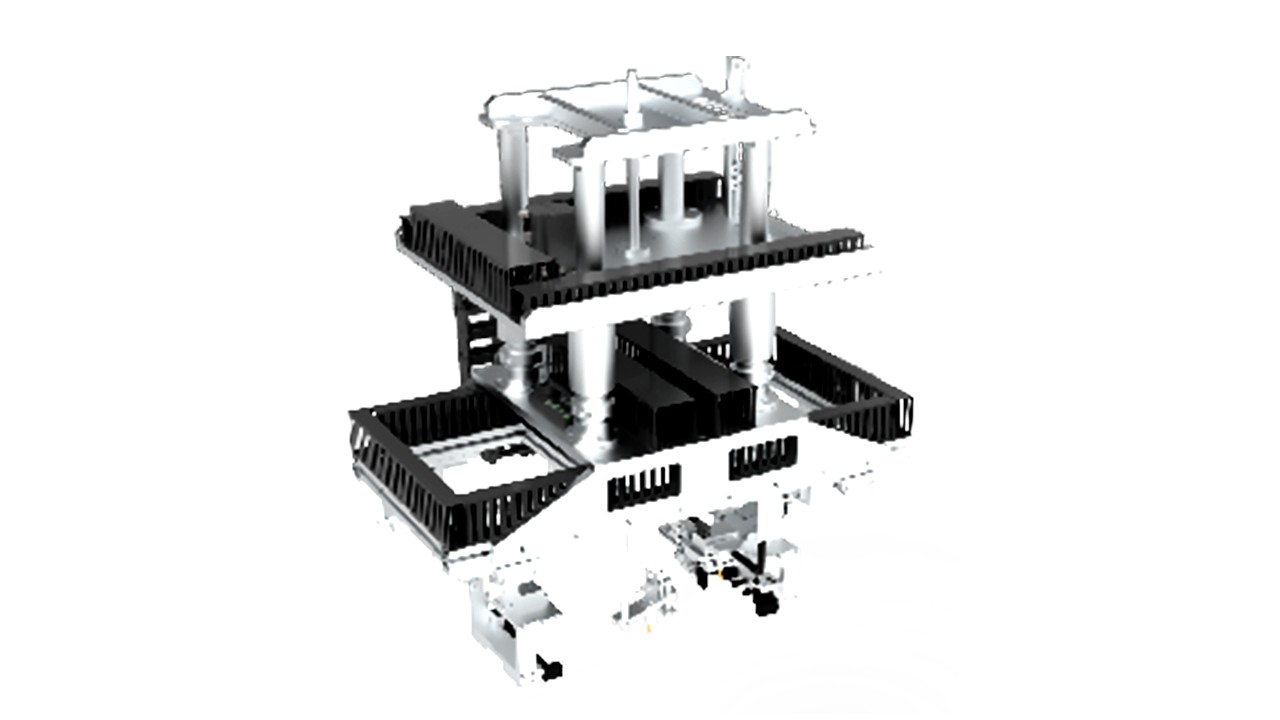

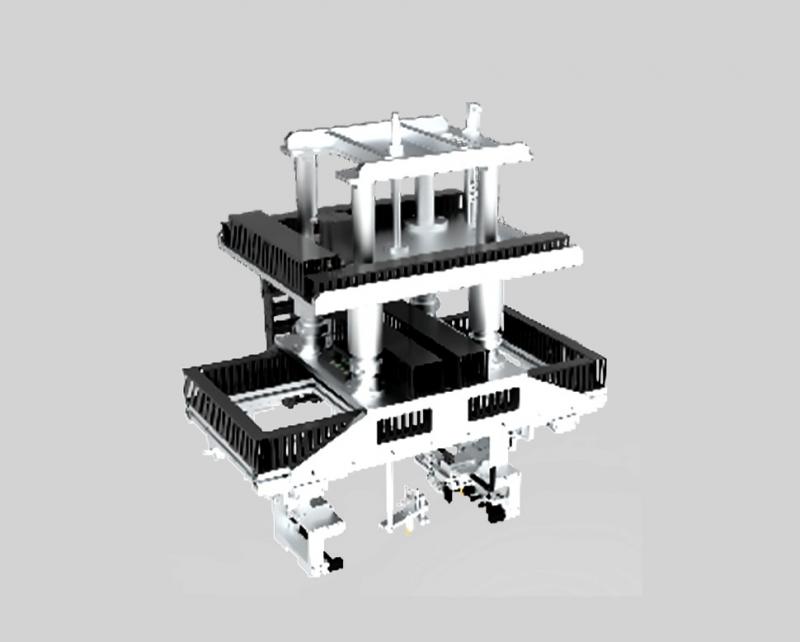

  • Automatic plug-in mechanism of low-voltage connector of module.
  • MES/MIS test requirements.
  • test system.
  • test probe.

PARAMETER FORM

Basic parameters

parameter value

Machine size

4.06*1.7*2.2m

Speed

105S/EA

CMK

≥1.67

One-time excellent rate

＞99.95%

Failure rate

＜0.2%
