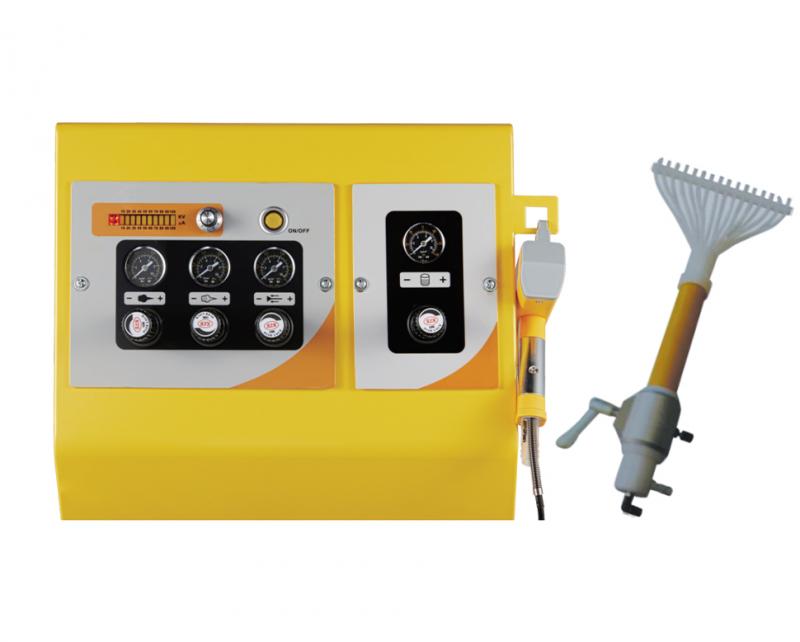

MC-16 Powder Friction Spray Gun

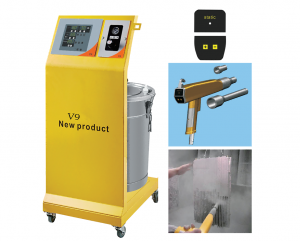

V9 CNC Automatic Powder Spraying Gun V9 is a new patented product; fully CNC programmable electrostatic powder spray gun, and single gun on the V9 is a new patented product; a fully CNC programmable electrostatic gun with remote control of the powder volume on a single gun, for manual and automatic gun control. On the one hand, the controller has three standard pre-programmed programs for coating flat, complex and re-sprayed parts. On the other hand, the user can precisely control the voltage, spray current, powder output and total air volume at the touch of a button. Up to 20 programs can be stored.   Advantages 1. Replaces simple, repetitive manual spraying and can withstand the demands of continuous work.  2. Uniform spray thickness improves product quality and saves paint.  3. high efficiency, easy to operate with human-machine interface inputs. V9  Input Key Function No. Usage and Function 1 Add or subtract the powder 2 Nebulizing plus or minus 3 Electrostatic charge plus or minus 4 Cleansing gas plus or minus 5 Program Selection Plus and Minus 6 New Workpiece Coating Patterns 7 Notched Position Spray Patterns 8 Coating mode for repetitive sprayed parts 9 Program switching key (manual and switching between three modes) 10 Secondary menu switching key (setting cleaning gas) 11 Static switch key 12 Work instructions 13 Power-on indication 14 Power indicator 15 Power key CONTACT US Email:colin@xmsinuowei.com    Tel:+86 18150116901 Whatsapp:+86 18150116901

Automatic Reciprocating Machine Features: with upper and lower limit automatic protection function (1)Choose full Chinese digital display frequency conversion control system, easy to operate, easy to understand and learn. (2)Non-wearing single-phase motor drive, simple maintenance. (3)Stroke and number can be changed at any time according to the demand of workpiece. (4)The whole machine is sprayed with plastic, and with tank track to take in and put out the pipeline. (5)Suitable for powder spraying and painting and other high requirement spraying. (6)Sound control program to ensure accurate positioning. (7)Suitable for spraying workpieces in various complex environments and high process parameters. Technical Characteristics and Detailed Analysis: Painting special elevator is by the variable speed motor, high-speed guide, automatic frequency converter, positioner and other systems can be up and down reciprocating automatic spraying equipment. Automatic spray gun mounted on the end of the fixed bracket (single side can be installed 2-6 guns) spraying, according to the pre-programmed reciprocating spraying. 1、the speed is stepless adjustable (positive, return respectively adjustable), touch screen monitor, using digital display equipment operating conditions, operating methods and fault alarm and other functions. 2, can store 5 spraying guns. 2、can store 5 spraying workpiece process data. Power failure can be maintained for three years without re-entry process data. 3、Spraying workpiece can be sprayed at up to forty speeds and time delays during the lift stroke, thus improving the spraying quality of complex sprayed parts. 4、Optional control system can be linked with the conveyor chain and spray gun.

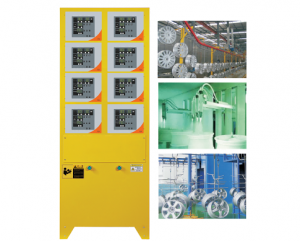

TOP--960 CNC Electrostatic Powder Spray Gun Technical characteristics and detailed analysis:  Equipped with the most advanced international electrostatic generator, for the most advanced electrostatic generator is equipped with the most advanced electrostatic generator in the world, for the difficult workpieces, one shot powdering in the corner (dead corner), fine leveling of the repainted parts, and gorgeous coating of the metal powder. Automatic feedback: according to the distance between the workpiece and the gun needle, high-voltage electrostatic automatic tracking, high powder rate (low powder consumption), automatically adjust the voltage, current, so that it remains in the most ideal state to release the electrostatic energy, to overcome the "shielding effect" of rapid color change; a high degree of automation; saving powder, convenient operation; very high spraying efficiency. Highly automated; Powder saving, convenient operation; High spraying efficiency; Safe, reliable, efficient and durable. Input Key Function No. Usage and function 1 Powder adjustment 2 Atomization adjustment 3 Clean electronic needle adjustment 4 Powder pressure gauge 5 Atomizing air pressure gauge 6 Clean electronic barometer 7 Static display 8 Static regulator 9 Power key

V9 CNC Electrostatic Powder Spray Gun V9 Performance Introduction Full numerical control programmable electrostatic powder spray gun, and single gun on the remote control Powder amount size for manual and automatic gun control. On the one hand, the controller has three standard pre-stored programs On the one hand, the controller has three standard programs pre-stored, which are specifically designed for spraying flat workpieces, complex workpieces and re-sprayed workpieces. On the other hand, the user can precisely control the voltage, spray current, powder output and total air volume at the touch of a button. Up to 20 programs can be stored. How to Use Please connect the ground wire first before turning on the power supply. Wait 5 seconds before pressing the power on button after the 220V power is turned on for the first time, and wait 10 seconds for the 110V power. After the host starts, if you press the key, the passive interface will display the set value of each data, and the actual value will be displayed after 3 seconds, and the system will save all the current data. Input Key Function No.    Function 1 Add or subtract powder 2 Nebulization plus or minus 3 electrostatic additions and subtractions 4 cleansing gas plus or minus 5 Program selection plus or minus 6 New Workpiece Coating Patterns 7 Notched Position Spray Patterns 8 Coating mode for repetitive sprayed parts 9 Program switching key (manual and switching between three modes) 10 Secondary menu switching key (setting cleaning gas) 11 Static switch key 12 work instruction 13 power-on indication 14 power indicator 15 Powe key 16 Fluidization control 17 Fluidizing Pressure Indicator Back Interface Function No. Function 1 220VAC power cord 2 Single Gun Control Line Interface 3 Mainframe Ground 4 Air input 2. φ8 connector 5 Powder pump powder quantity interface φ8 6 Powder pump atomization interface 6 7 Electrode needle cleaning gas port φ4 8 Powder drum fluidization interface φ6 9 Air Input 1. Quick Connector 10 φ8 gas pipe connection "4" and "11" 11 φ8 connector PARAMATER FORM Electronic controller systems Built-in electrostatic spray gun Pneumatic control systems Input voltage: 220V/110V Input voltage: 12V Solenoid voltage: 24VDC Input frequency: 50HZ Input frequency: 35KHZ Input air pressure: 5.5-8bar Input power: 46W Input current: ≤0.6A Compressed air moisture: ≤ma*1.3/NM3 Output voltage: 12VDC Output voltage: -100KVDC Compressed air oil content: ≤ma*0.01g/NM3 Output current: 0.1A-1A Output current: 0-100UA Air flow: ma*19g/NM₃ Valve control voltage: 24VDC Connection cable: 5M Input cable: 2.5M List of configurations for a single set of powder guns: 1. a host  2. a single gun 3. a set of flat nozzle, venturi 4. environmentally friendly silicone powder tube  5. high-flow powder pump a 6. connection PU tube 7. a stainless steel powder barrel 8. a set of electrode holder 9. a set of large, medium and small nozzle 10. a mobile cart 11. a ground line 12. a set of extension rod

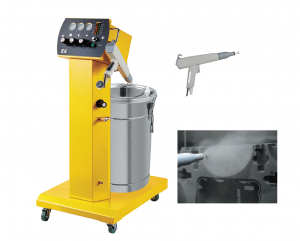

E6 Electrostatic Powder Spray Gun Performance Introduction High-voltage static electricity automatic tracking to meet any working condition. Built-in Internal module of built-in electrostatic spray gun generates and releases directly, the high voltage electric field is mainly concentrated between the gun needle and the workpiece, charging the powder repeatedly at a high frequency to improve the powder loading rate. Total energy AFC control, according to the distance between the gun needle and the workpiece, so that it is maintained in the most ideal state to release the electrostatic energy, and automatic spray gun common, reduce replacement costs. Input Key Function No. Function 1 Powder Adjustment 2 Atomization Adjustment 3 Clean Electrode Needle Adjustment 4 Powder Pressure Gauge 5 Atomizing Air Pressure Gauge 6 Clean Electrode Air Pressure Gauge 7 Static Display 8 Static regulator 9 Power Key Back Interface Function No. Function 1 220VAC power cable 2 Mainframe Ground 3 Single Gun Control Line Interface 4 Powder pump powder quantity interface φ8 5 Powder pump atomization port φ6 6 Electrode needle cleaning gas port φ4 7 Air input 2.φ8 connector PARAMETER FORM Electronic controller systems Built-in electrostatic spray gun Pneumatic control systems Input voltage: 220VAC Input voltage: 12V Solenoid voltage: 24VDC Input frequency: 50HZ Input frequency: 20KHZ Input air pressure: 5.5-8bar Input power: 36W Input current: ≤0.7A Compressed air moisture: ≤ma*1.3/NM3 Output voltage: 12VDC Output Voltage: -85KVDC Compressed air oil content: ≤ma*0.01g/NM3 Output current: 0.1A-0.7A Output current: 0-100UA Air flow: ma*19g/NM3 Valve control voltage: 24VDC Connection cable: 4.5M Input cable: 2.5M List of configurations for a single set of powder guns 1. a host 2. a single gun 3. a set of flat nozzle, venturi 4. environmentally friendly silicone powder tube 5. high-flow powder pump a 6. connection PU tube 7. a stainless steel powder barrel 8. a set of electrode holder 9. a set of large, medium and small nozzle 10. a mobile cart 11. a ground line 12. a set of extension rod

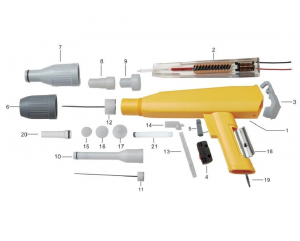

Common Accessory Numbers Ordering Number    Accessory Name 11 1011 Extended Electrode Needle 1 1001 Single Gun Housings 12 1012 Short Electrode Needle 2 1002 High Voltage Module 13 1013 Internal Powder Piping 3 1003 Single shot back cover 14 1014 Single shot internal elbow 4 1004 Power key 15 1015 Nozzle (18mm) 5 1005 Key button 16 1016 Nozzle (20mm) 6 1006 Flat Electrode Tip 17 1017 Nozzle (22mm) 7 1007 Round Electrode Tip 18 1018 grounding strap 8 1008 Flat Nozzles 19 1019 Cleaner Fittings 9 1009 Automatic Gun Flat Nozzle 20 1020 Ventolin 10 1010 Extensions 21 1021 Horizontal inner tube
