V9 CNC Automatic Powder Spraying Gun

Automatic Reciprocating Machine Features: with upper and lower limit automatic protection function (1)Choose full Chinese digital display frequency conversion control system, easy to operate, easy to understand and learn. (2)Non-wearing single-phase motor drive, simple maintenance. (3)Stroke and number can be changed at any time according to the demand of workpiece. (4)The whole machine is sprayed with plastic, and with tank track to take in and put out the pipeline. (5)Suitable for powder spraying and painting and other high requirement spraying. (6)Sound control program to ensure accurate positioning. (7)Suitable for spraying workpieces in various complex environments and high process parameters. Technical Characteristics and Detailed Analysis: Painting special elevator is by the variable speed motor, high-speed guide, automatic frequency converter, positioner and other systems can be up and down reciprocating automatic spraying equipment. Automatic spray gun mounted on the end of the fixed bracket (single side can be installed 2-6 guns) spraying, according to the pre-programmed reciprocating spraying. 1、the speed is stepless adjustable (positive, return respectively adjustable), touch screen monitor, using digital display equipment operating conditions, operating methods and fault alarm and other functions. 2, can store 5 spraying guns. 2、can store 5 spraying workpiece process data. Power failure can be maintained for three years without re-entry process data. 3、Spraying workpiece can be sprayed at up to forty speeds and time delays during the lift stroke, thus improving the spraying quality of complex sprayed parts. 4、Optional control system can be linked with the conveyor chain and spray gun.

TOP--960 CNC Electrostatic Powder Spray Gun Technical characteristics and detailed analysis:  Equipped with the most advanced international electrostatic generator, for the most advanced electrostatic generator is equipped with the most advanced electrostatic generator in the world, for the difficult workpieces, one shot powdering in the corner (dead corner), fine leveling of the repainted parts, and gorgeous coating of the metal powder. Automatic feedback: according to the distance between the workpiece and the gun needle, high-voltage electrostatic automatic tracking, high powder rate (low powder consumption), automatically adjust the voltage, current, so that it remains in the most ideal state to release the electrostatic energy, to overcome the "shielding effect" of rapid color change; a high degree of automation; saving powder, convenient operation; very high spraying efficiency. Highly automated; Powder saving, convenient operation; High spraying efficiency; Safe, reliable, efficient and durable. Input Key Function No. Usage and function 1 Powder adjustment 2 Atomization adjustment 3 Clean electronic needle adjustment 4 Powder pressure gauge 5 Atomizing air pressure gauge 6 Clean electronic barometer 7 Static display 8 Static regulator 9 Power key

MC-16 Powder Friction Spray Gun Friction type spraying method is to use the powder through the friction tube at high speed so that the powder is charged due to friction, this type of coating equipment is composed of a powder storage barrel, powder pump control host. This type of coating equipment is composed of powder storage barrel, powder pump control host and spray gun. This type of coating equipment is composed of powder storage barrel, powder pump control host and spray gun, this type of equipment is charged by friction of powder itself, so it does not need power supply and electrostatic generator to produce high voltage or forced powder. This type of equipment does not need power supply and electrostatic generator to produce high voltage or force the powder to be charged, so there is no electrode, and the spray gun is not connected with the workpiece. There is no electrode, and no strong electrostatic field is generated between the spray gun and the workpiece when the coating operation is carried out, and this kind of independent small electrostatic field is very weak. This small electrostatic field strength is very weak, can only be called a weak electric field, and each paint particles are positively charged. Advantages of the friction-generated spraying method: Faraday effect Powder easily enters into deep recesses of the workpiece, and there is no possibility of automation of dead corners and over-thickness of edges. Powder easily penetrates into deep holes, corners, and narrow grooves, enabling unmanned powder coating that does not require manual repair. Uniformity of coating No Laddie effect, no repulsive phenomenon, and ultra-thick coating can be done up to 400 microns in a single spraying. For some powders, film thicknesses of 30 microns or less can be achieved, and multiple choices of nozzles are available. Orange Peel Weak high-pressure, uniform powder cloud, uniform multi-finger spraying width, the same powder with the traditional electrostatic spraying method will produce orange peel, but not with the friction-generated electricity coating method.               Electrostatic field Each charged powder foam generates a weak electric field, through the air pointing to blow and stick the powder foam to the designated point, the film thickness of the inside and outside of the concave and corners is consistent, and it can save the powder foam by 20-40%. Multi-layer coating Since there is no anti-repulsion phenomenon, it is possible to do multi-layer coating without pinholes or craters under the requirement of heavy corrosion protection. Various applications The automatic spray gun is used with various spray nozzles to apply to various coating jobs with different requirements. Foam output Friction-generated electric spraying method has a smaller amount of foam output than the traditional high-pressure electric spraying method. Although the amount of foam output is smaller, the coating efficiency is higher, the output is unaffected, the load on the recovery system can be greatly reduced, and the energy consumption and maintenance costs are low. Advantages of friction electrostatic guns: Low friction, low running cost New charging method tube wall internal pressure and temperature is small, tube wall friction is less, parts replacement is also cheap, the user has the ability to replace their own. Atomization accelerated air In the body of the gun to increase an assist in atomizing and accelerating the powder foam, so that it excites the powder foam to release positively charged electrons, and depending on the need to send the charged powder to be coated at different places. Interchangeability Most of the parts are interchangeable with the old automatic electrostatic friction gun to increase its economy. Operability Spray gun design, simple operation, no need for advanced skills, general technical personnel to learn easy.

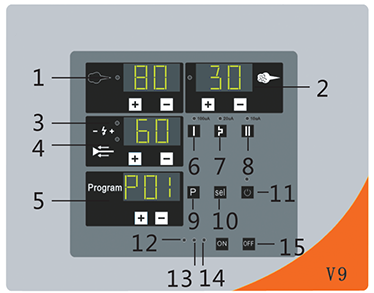

V9 CNC Electrostatic Powder Spray Gun V9 Performance Introduction Full numerical control programmable electrostatic powder spray gun, and single gun on the remote control Powder amount size for manual and automatic gun control. On the one hand, the controller has three standard pre-stored programs On the one hand, the controller has three standard programs pre-stored, which are specifically designed for spraying flat workpieces, complex workpieces and re-sprayed workpieces. On the other hand, the user can precisely control the voltage, spray current, powder output and total air volume at the touch of a button. Up to 20 programs can be stored. How to Use Please connect the ground wire first before turning on the power supply. Wait 5 seconds before pressing the power on button after the 220V power is turned on for the first time, and wait 10 seconds for the 110V power. After the host starts, if you press the key, the passive interface will display the set value of each data, and the actual value will be displayed after 3 seconds, and the system will save all the current data. Input Key Function No.    Function 1 Add or subtract powder 2 Nebulization plus or minus 3 electrostatic additions and subtractions 4 cleansing gas plus or minus 5 Program selection plus or minus 6 New Workpiece Coating Patterns 7 Notched Position Spray Patterns 8 Coating mode for repetitive sprayed parts 9 Program switching key (manual and switching between three modes) 10 Secondary menu switching key (setting cleaning gas) 11 Static switch key 12 work instruction 13 power-on indication 14 power indicator 15 Powe key 16 Fluidization control 17 Fluidizing Pressure Indicator Back Interface Function No. Function 1 220VAC power cord 2 Single Gun Control Line Interface 3 Mainframe Ground 4 Air input 2. φ8 connector 5 Powder pump powder quantity interface φ8 6 Powder pump atomization interface 6 7 Electrode needle cleaning gas port φ4 8 Powder drum fluidization interface φ6 9 Air Input 1. Quick Connector 10 φ8 gas pipe connection "4" and "11" 11 φ8 connector PARAMATER FORM Electronic controller systems Built-in electrostatic spray gun Pneumatic control systems Input voltage: 220V/110V Input voltage: 12V Solenoid voltage: 24VDC Input frequency: 50HZ Input frequency: 35KHZ Input air pressure: 5.5-8bar Input power: 46W Input current: ≤0.6A Compressed air moisture: ≤ma*1.3/NM3 Output voltage: 12VDC Output voltage: -100KVDC Compressed air oil content: ≤ma*0.01g/NM3 Output current: 0.1A-1A Output current: 0-100UA Air flow: ma*19g/NM₃ Valve control voltage: 24VDC Connection cable: 5M Input cable: 2.5M List of configurations for a single set of powder guns: 1. a host  2. a single gun 3. a set of flat nozzle, venturi 4. environmentally friendly silicone powder tube  5. high-flow powder pump a 6. connection PU tube 7. a stainless steel powder barrel 8. a set of electrode holder 9. a set of large, medium and small nozzle 10. a mobile cart 11. a ground line 12. a set of extension rod

E6 Electrostatic Powder Spray Gun Performance Introduction High-voltage static electricity automatic tracking to meet any working condition. Built-in Internal module of built-in electrostatic spray gun generates and releases directly, the high voltage electric field is mainly concentrated between the gun needle and the workpiece, charging the powder repeatedly at a high frequency to improve the powder loading rate. Total energy AFC control, according to the distance between the gun needle and the workpiece, so that it is maintained in the most ideal state to release the electrostatic energy, and automatic spray gun common, reduce replacement costs. Input Key Function No. Function 1 Powder Adjustment 2 Atomization Adjustment 3 Clean Electrode Needle Adjustment 4 Powder Pressure Gauge 5 Atomizing Air Pressure Gauge 6 Clean Electrode Air Pressure Gauge 7 Static Display 8 Static regulator 9 Power Key Back Interface Function No. Function 1 220VAC power cable 2 Mainframe Ground 3 Single Gun Control Line Interface 4 Powder pump powder quantity interface φ8 5 Powder pump atomization port φ6 6 Electrode needle cleaning gas port φ4 7 Air input 2.φ8 connector PARAMETER FORM Electronic controller systems Built-in electrostatic spray gun Pneumatic control systems Input voltage: 220VAC Input voltage: 12V Solenoid voltage: 24VDC Input frequency: 50HZ Input frequency: 20KHZ Input air pressure: 5.5-8bar Input power: 36W Input current: ≤0.7A Compressed air moisture: ≤ma*1.3/NM3 Output voltage: 12VDC Output Voltage: -85KVDC Compressed air oil content: ≤ma*0.01g/NM3 Output current: 0.1A-0.7A Output current: 0-100UA Air flow: ma*19g/NM3 Valve control voltage: 24VDC Connection cable: 4.5M Input cable: 2.5M List of configurations for a single set of powder guns 1. a host 2. a single gun 3. a set of flat nozzle, venturi 4. environmentally friendly silicone powder tube 5. high-flow powder pump a 6. connection PU tube 7. a stainless steel powder barrel 8. a set of electrode holder 9. a set of large, medium and small nozzle 10. a mobile cart 11. a ground line 12. a set of extension rod

Common Accessory Numbers Ordering Number    Accessory Name 11 1011 Extended Electrode Needle 1 1001 Single Gun Housings 12 1012 Short Electrode Needle 2 1002 High Voltage Module 13 1013 Internal Powder Piping 3 1003 Single shot back cover 14 1014 Single shot internal elbow 4 1004 Power key 15 1015 Nozzle (18mm) 5 1005 Key button 16 1016 Nozzle (20mm) 6 1006 Flat Electrode Tip 17 1017 Nozzle (22mm) 7 1007 Round Electrode Tip 18 1018 grounding strap 8 1008 Flat Nozzles 19 1019 Cleaner Fittings 9 1009 Automatic Gun Flat Nozzle 20 1020 Ventolin 10 1010 Extensions 21 1021 Horizontal inner tube
