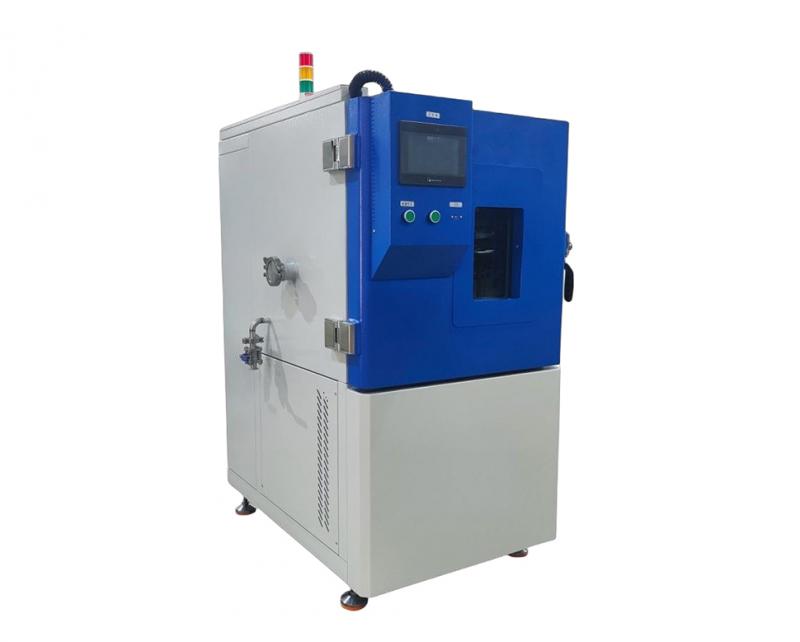

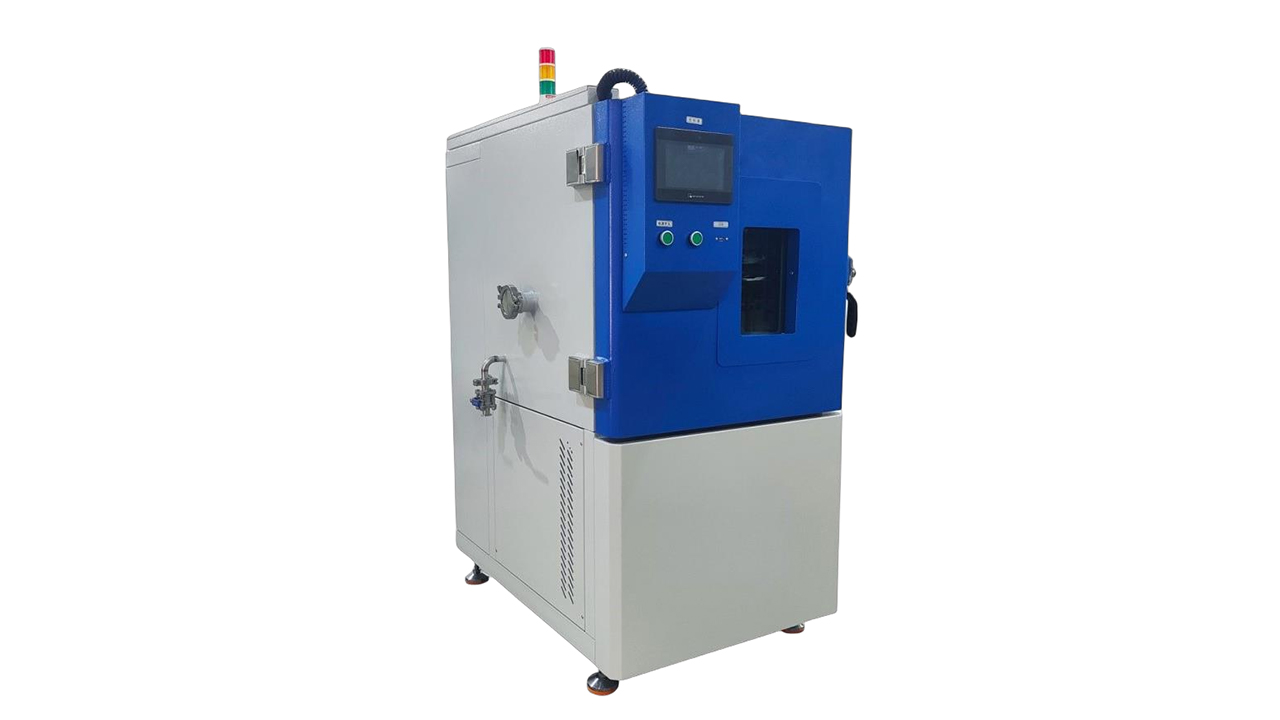

High temperature and high humidity test chamber High temperature and high humidity box

Equipment for:  Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: Temperature range： -70℃～150℃ Humidity range： 20-98%R.H Heating and cooling rate: 5℃/min 10℃/min 15℃/min 20℃/min Temperature uniformity: ≤2℃ Temperature deviation： ≤±2℃ Humidity deviation： ≤±3%R.H Temperature fluctuation： ≤±0.5℃ Reference standard: GB/T2423 GB/T5170 GB/T11158 GB/T10589 GB/T10592/GB/T10586 IEC60068-3-5 Equipment show:

Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: Temperature range： RT～50℃；customizable Temperature stability： ±0.5℃ Distribution uniformity： ≤ 2℃ Temperature deviation： ≤±2℃ Salt spray deposition: 1~3ml/80cm².h Spray method: Continuous/periodic optional (1s~999h adjustable) Equipment show:

Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment size: Customizable Equipment parameter: Total irradiance: Full spectrum 280～3000nm band; 1120 W/m2±10% W/m2 Temperature range in the box: The light will not turn on when the temperature is between 10℃ and 30℃ Heating and cooling rate: 1℃/min Black label temperature range: 40℃～100℃ adjustable (light cycle); 25～85℃ (dark cycle) Temperature fluctuation: ±0.5℃ Temperature deviation: ±2℃ Humidity range: 0%～60%RH(When it's dark)； 30%～98%RH(When the light is on) Humidity fluctuation: ±3%RH Humidity deviation: ≤5%RH Equipment show:

Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter： Ambient temperature： +25℃, relative humidity ≤ 85％ Temperature / humidity range: -60℃ to +150℃ / 20% (limited temperature range, see area map) to 98% RH (no heat source load) Temperature/humidity fluctuation:  ±0.5℃ / ±2%RH (≤75%) (constant, no load) Temperature/Humidity Deviation: ≤±2℃ ∕ ±3%RH (>75%); ±5%RH (≤75%) (constant, no load) Temperature uniformity: ≤±2℃ (constant, no load) Temperature rise time: -40°C to +85°C , ≥5°C ∕ minute (no load), the air outlet measurement Cooling time: +85℃ to -40℃, ≥5℃ ∕ minutes (no load), the air outlet measurement Temperature rise and fall overshoot: ≤ ±2°C Equipment noise: ≤ 70dB (A sound level, constant, 1m in front of the equipment) Equipment show：

Equipment for:  Automotive electronics/components,LCMLED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: Temperature range: -40℃～100℃ Temperature stability： ±0.5℃ Distribution uniformity： ≤2℃ Temperature deviation： ≤±2℃ Humidity range： 20%~98%R.H Humidity fluctuation： ≤±3%RH Humidity deviation： ≤±3.0 %RH Temperature rise rate： linear temperature rise Power supply specification： Power ON/OFF independent control, two independent VDD output, VDD voltage automatic compensation Provide LVDS, VBYONE, MIPI, EDP, RGB signals Power supply protection OCP, OVP, UCP, and UVP Settings Provides device, signal, software integration Equipment show:

Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: (customizable) Temperature range： -65℃～150℃ Temperature stability： ±0.5℃ Distribution uniformity： ≤4℃ Temperature deviation： ≤±2℃ Defrost cycle: ≥25 cycles Conversion time of high and low temperature switch: ≤15s Recovery time: ＜5 min During high and low temperature switching，overshoot temperature≤3℃ Equipment show:
