Xiamen Sinuowei Automated Science and Technology Co.,Ltd

banner
Products

High and low temperature experiment box High and low temperature test chamber

Products description

Equipment for:

Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc.

Equipment parameter:

Ambient temperature:

+25℃, relative humidity ≤ 85%

Temperature / humidity range:

-60℃ to +150℃ / 20% (limited temperature range, see area map) to 98% RH (no heat source load)

Temperature/humidity fluctuation:

±0.5℃ / ±2%RH (≤75%) (constant, no load)

Temperature/Humidity Deviation:

≤±2℃ ∕ ±3%RH (>75%); ±5%RH (≤75%) (constant, no load)

Temperature uniformity:

≤±2℃ (constant, no load)

Temperature rise time:

-40°C to +85°C , ≥5°C ∕ minute (no load), the air outlet measurement

Cooling time:

+85℃ to -40℃, ≥5℃ ∕ minutes (no load), the air outlet measurement

Temperature rise and fall overshoot:

≤ ±2°C

Equipment noise:

≤ 70dB (A sound level, constant, 1m in front of the equipment)

Equipment show

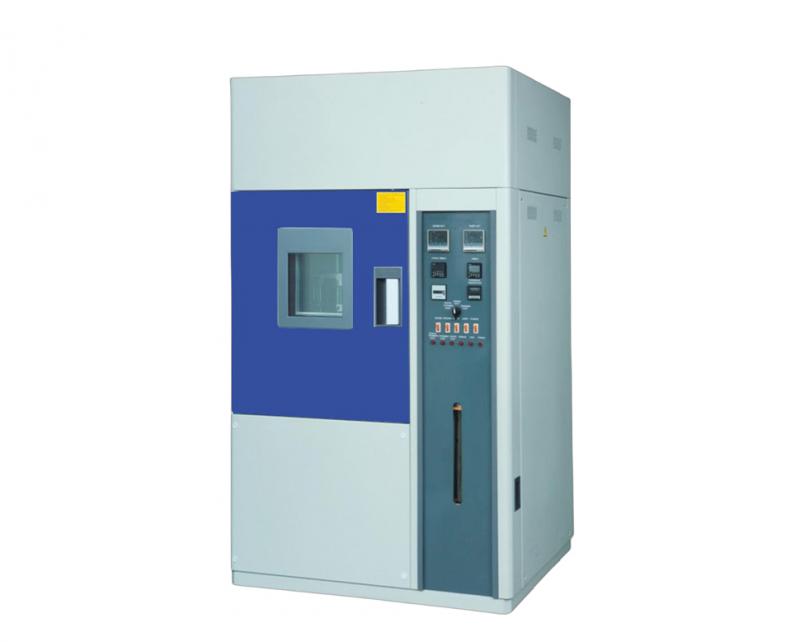

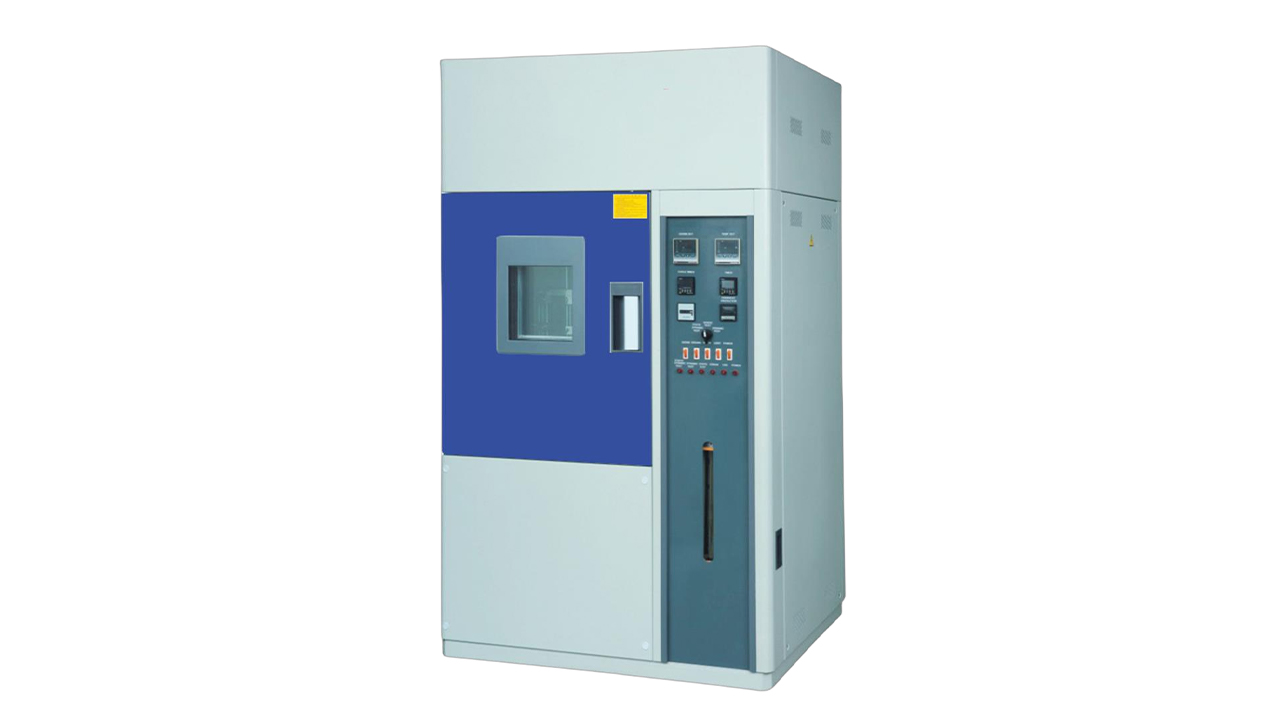

1.High and low temperature experiment box

GET IN TOUCH

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Product
Rapid Temperature Change Test Equipment Rapid Temperature change test Chamber
Equipment for:  Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: Temperature range: -70℃~150℃ Humidity range: 20-98%R.H Heating and cooling rate: 5℃/min 10℃/min 15℃/min 20℃/min Temperature uniformity: ≤2℃ Temperature deviation: ≤±2℃ Humidity deviation: ≤±3%R.H Temperature fluctuation: ≤±0.5℃ Reference standard: GB/T2423 GB/T5170 GB/T11158 GB/T10589 GB/T10592/GB/T10586 IEC60068-3-5 Equipment show:
Salt spray test chamber Salt spray test equipment
Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: Temperature range: RT~50℃;customizable Temperature stability: ±0.5℃ Distribution uniformity: ≤ 2℃ Temperature deviation: ≤±2℃ Salt spray deposition: 1~3ml/80cm².h Spray method: Continuous/periodic optional (1s~999h adjustable) Equipment show:
Solar radiation test equipment Solar radiation test chamber
Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment size: Customizable Equipment parameter: Total irradiance: Full spectrum 280~3000nm band; 1120 W/m2±10% W/m2 Temperature range in the box: The light will not turn on when the temperature is between 10℃ and 30℃ Heating and cooling rate: 1℃/min Black label temperature range: 40℃~100℃ adjustable (light cycle); 25~85℃ (dark cycle) Temperature fluctuation: ±0.5℃ Temperature deviation: ±2℃ Humidity range: 0%~60%RH(When it's dark); 30%~98%RH(When the light is on) Humidity fluctuation: ±3%RH Humidity deviation: ≤5%RH Equipment show:
High temperature and high humidity test chamber High temperature and high humidity box
Equipment for: automotive electronics / components, LED / LCD / PDP display lighting, new energy / electronic components / electrical appliances, plastic / rubber / film, scientific research / quality control / colleges and universities / medical equipment, PCB / FPC / HDI / MPCB / IC and so on. Equipment parameter: (customizable) temperature range: 0℃~100℃ Temperature stability: ±0.5℃ Distribution uniformity: ≤ 2℃ Temperature deviation: ≤±2℃ Humidity range: 20%~98%R.H Humidity fluctuation: ≤±3%RH Humidity deviation: ≤±3.0 %RH Temperature rise rate: linear temperature rise Equipment show:
Constant temperature and humidity equipment
Equipment for:  Automotive electronics/components,LCMLED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: Temperature range: -40℃~100℃ Temperature stability: ±0.5℃ Distribution uniformity: ≤2℃ Temperature deviation: ≤±2℃ Humidity range: 20%~98%R.H Humidity fluctuation: ≤±3%RH Humidity deviation: ≤±3.0 %RH Temperature rise rate: linear temperature rise Power supply specification: Power ON/OFF independent control, two independent VDD output, VDD voltage automatic compensation Provide LVDS, VBYONE, MIPI, EDP, RGB signals Power supply protection OCP, OVP, UCP, and UVP Settings Provides device, signal, software integration Equipment show:
Cold and thermal shock test equipment Cold and thermal shock test chamber
Equipment for: Automotive electronics/components, LED/LCD/PDP display lighting, new energy/electronic components/electrical appliances, plastics/rubber/films, scientific research/quality control/institutions/medical equipment, PCB/FPC/HDI/MPCB/IC, etc. Equipment parameter: (customizable) Temperature range: -65℃~150℃ Temperature stability: ±0.5℃ Distribution uniformity: ≤4℃ Temperature deviation: ≤±2℃ Defrost cycle: ≥25 cycles Conversion time of high and low temperature switch: ≤15s Recovery time: <5 min During high and low temperature switching,overshoot temperature≤3℃ Equipment show:
