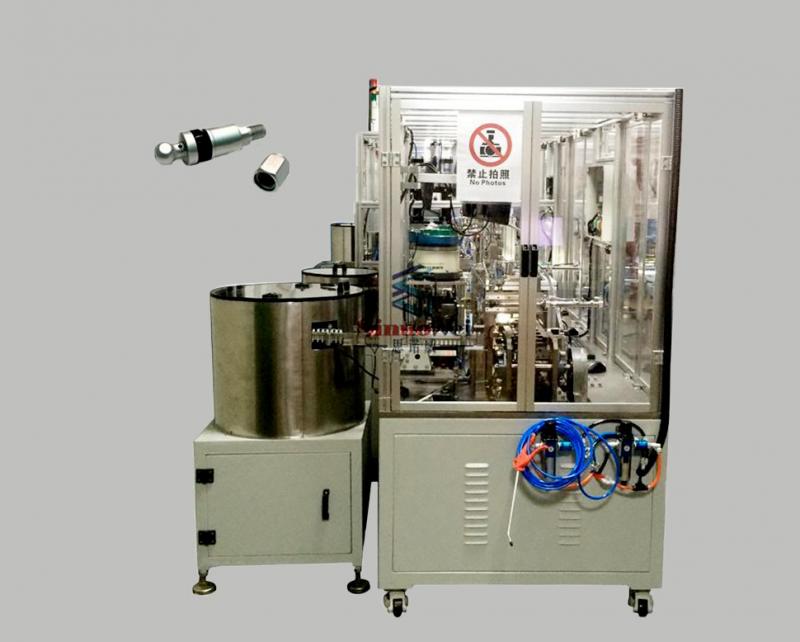

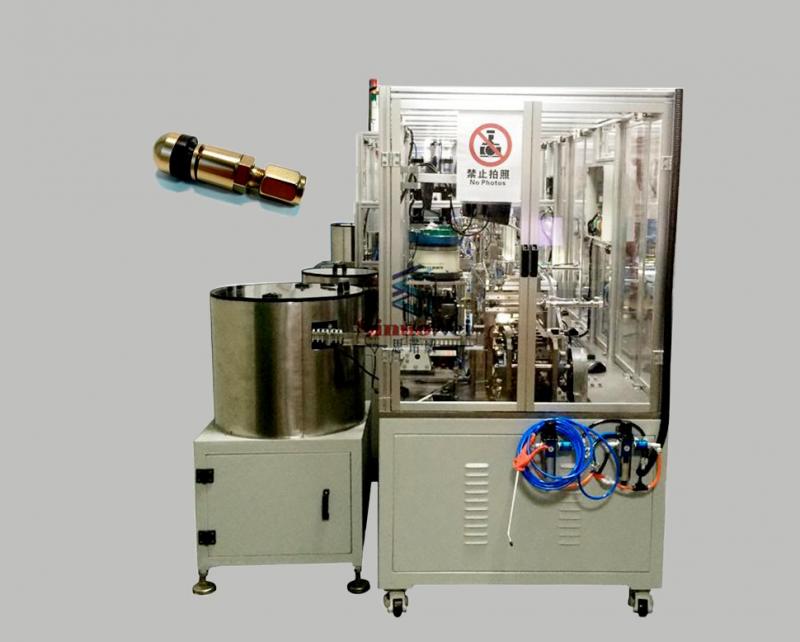

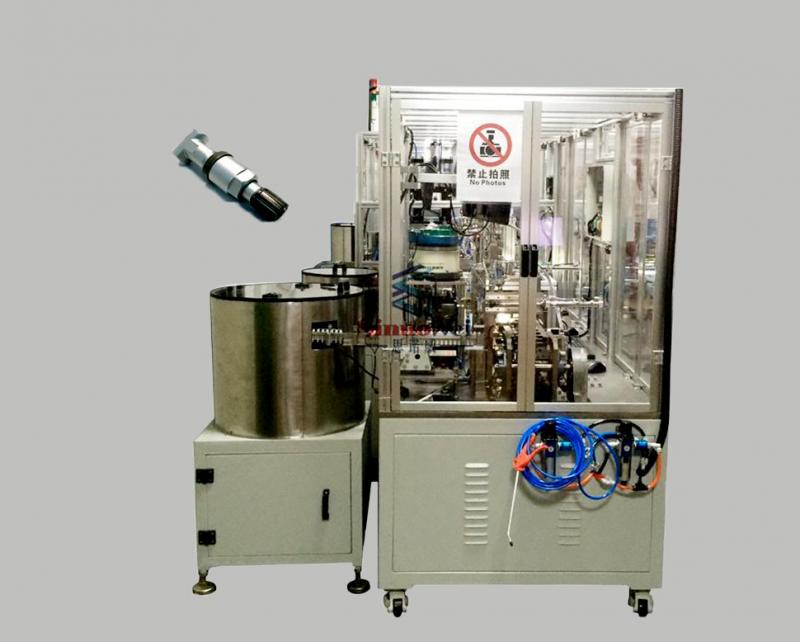

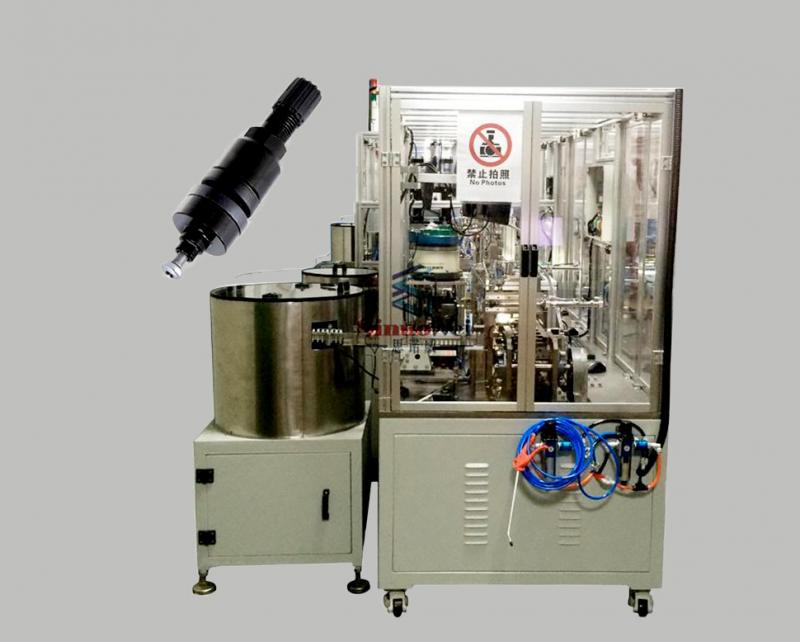

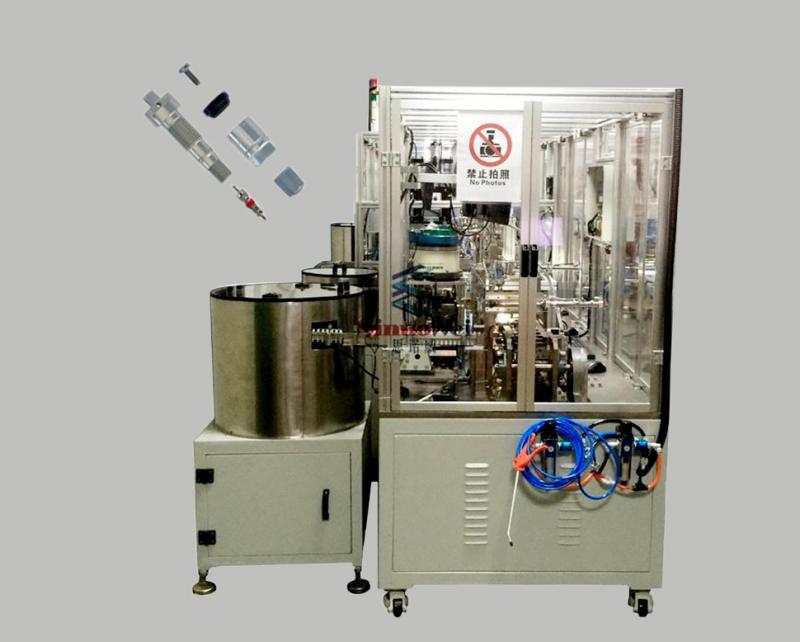

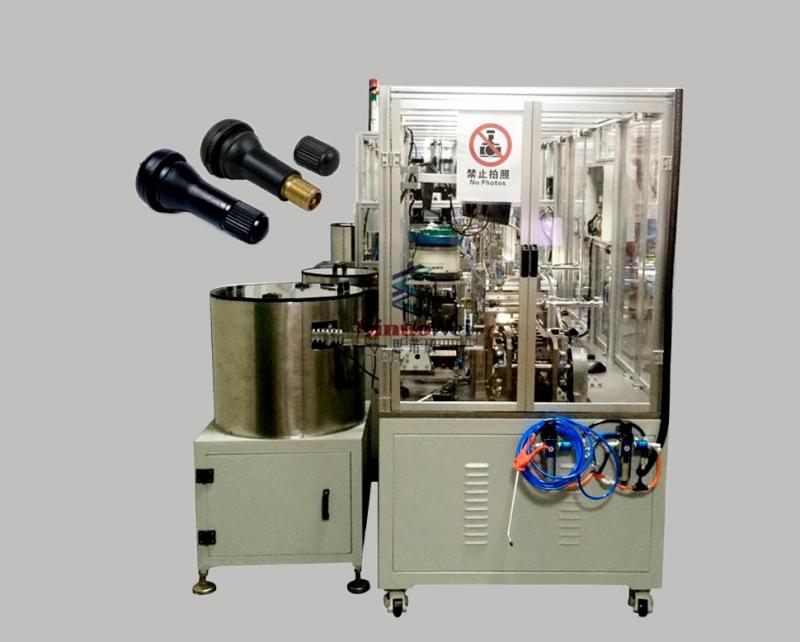

New Aluminum Clamp in Tyre Valve Stems Making Machine Manufacturer in Competitive Price for Sale

1. We have sold hundreds of machines already at home and abroad and they are working very well so far. As time went by, our machine become even more sophisticated with higher efficiency and greater stability.

2. We are professional in design and manufacture automatic assembly clamp in tyre valve machine with 10 years of experience. Our technology of automatic assembly tyre valve machine is mature and reliable.

3. The production efficiency is 1200pcs/hour more or less and working accuracy are all much higher than handmade, therefore satisfying the production requirements of new generation manufactures of tyre valve stem.

4.  An automatic assembly tire valve making machine can be designed as Multi-size according to client's requirement. Maybe two or four different sizes in one machine is available if the structure of clients' tyre valve stem allowed.

5. The same as another many parameters of machine, Free torque and broke torque of tyre valve can be customized. Our flexibility customization design to ensure all customer's requirements are met.

6. Compared with the traditional manual control manner, this machine has many advantages such as stable and simple operation. Working content is only adding semi-finished product material on bin every 4 hours.

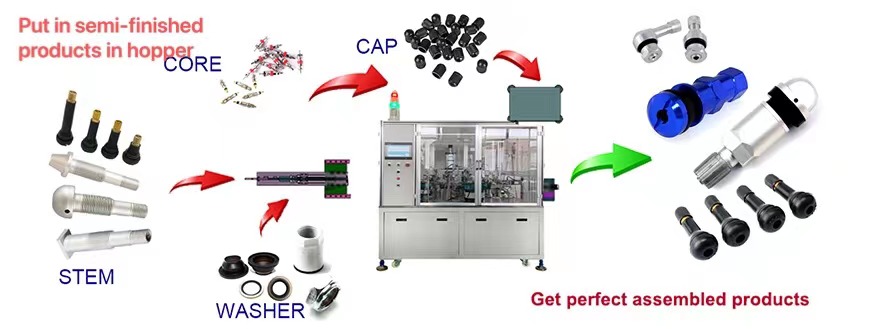

1. The valve body will be transferred into the machine in one direction by vibration linear feeder with bin. The valve body will be put into holes of mold in a panel and to be transfer into next station.

2.The pneumatic ejector will strong blow the inside of valve body by air to make sure that the valve is clean enough.

3. Not only the inside but also the outside of the top of valve will be test by the detecting system. If both side of valve thread is perfect and then the valve will be transfer next station.

4. The core of valve stem will be transferred into the machine directly in one direction by vibration linear feeder with bin. The cores to be tighten into the tested valve body in bottom-up.

5. After the valve body screwed by core, the machine will press the center of core to test whether the core is feasible to through the air. and then pick out the bad one.
