What is ceramic capacitor? The ceramic capacitor is one of the most common types of capacitors used in most electrical instruments due to its high reliability and low cost. In this form, ceramic or porcelain discs are used to make non-polarized capacitors and are used in various industries. The poor conductivity of ceramic materials makes them excellent dielectrics, as well as efficient supporters of electrostatic fields.
Ceramic Capacitor Basics
Ceramic capacitors are fixed-value capacitors made of ceramic material as the dielectric. It is made up of two or more layers of ceramic and a layer of metal acting as electrodes. Electrical behavior and therefore applications of ceramic materials are determined by the composition of the ceramic material. Ceramics are inorganic, non-metallic, crystalline oxide, nitride, or carbide compounds such as carbon and silicon. A ceramic capacitor, especially a multilayer ceramic capacitor (MLCC), is one of today’s most common electrical components.
Ceramic capacitors typically have a capacitance range of 10 pF to 0.1 μF.
The following figure shows the symbol for a ceramic capacitor:

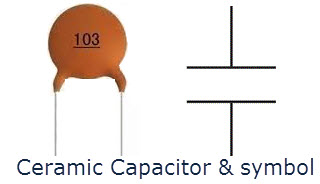

Symbol of a ceramic capacitor (Reference:elprocus.com)
The ceramic capacitor with three digits, 101, 102, 103, etc., indicates that it is measured in Pico-farads. However, when the same capacitor uses alphabets instead of digits, the value is AB x 10C Picofarad.
Types of Ceramic Capacitors
There are four main types of ceramic capacitors:
Class 1 Ceramic Capacitors
These capacitors are highly stable and have low losses in resonant circuits. Due to their low loss, they can be used in oscillators and filters. Their stable temperature coefficients make them suitable for high tolerance capacitors.
Class 2 Ceramic Capacitors
Based on the applied voltage, capacitors have a certain capacitance. The temperature coefficient of class 2 dielectrics is non-linear. Applications of these capacitors include coupling and decoupling.
Class 3 Ceramic Capacitors
Class 3 dielectrics have permittivity values that are up to 50,000 times greater than class 2 dielectrics. The capacitors are voltage-dependent and have high losses.
Class 4 Ceramic Capacitors
Class 4 capacitors are also called barrier layer capacitors.
The polarity of Ceramic Capacitors
The polarity of a capacitor is one of the most important considerations when connecting capacitors in an electric circuit. On the basis of their polarity, capacitors can be divided into two groups:
Polarized Capacitors
Polarized capacitors have two terminals, known as the anode and cathode.
Non-Polarized Capacitors
Unlike polarized capacitors, non-polarized capacitors have a terminal and, therefore, can be used in either direction. Non-polarity device refers to the absence of polarity on the capacitor.
Construction of Ceramic Capacitors
Ceramic capacitors are made up of granules of paraelectric or ferroelectric materials, which are combined with other materials to produce the desired behavior. At high temperatures, these powder mixtures are sintered into ceramics. Dielectric ceramics are used to serve as carriers for metallic electrodes. A ceramic powder grain size determines the minimum thickness of the dielectric layer. For capacitors with higher voltages, the dielectric strength of the capacitor determines the thickness of the dielectric.
A high temperature is applied after layering, and the material is sintered, resulting in ceramic material with the desired properties. As a result, a capacitor is formed by connecting many smaller capacitors in parallel, which results in an increase in capacitance.
A ceramic capacitor comes in three basic forms although other types exist:

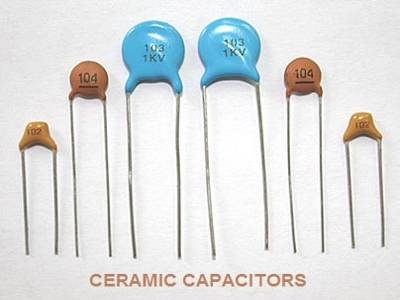

Leaded Disc Ceramic Capacitors
They are resin-coated for through-hole mounting. The ceramic discs are coated on both sides with silver contacts. Disc capacitors have capacitance values between 10pF and 100μF with voltage ratings ranging from 16V to 15KV. The devices can be made up of multiple layers to gain higher capacitances.
Disc type of ceramic capacitor consists of two conductive discs on either side of the ceramic insulator. These plates are coated in a ceramic composition that is waterproof, to which the leads are attached. This type of ceramic capacitor is available up to the value of 0.01 F. They can withstand a DC voltage of 750 volts and an AC voltage of 350 volts.

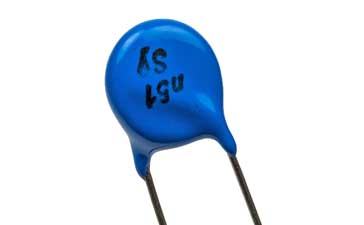

Leaded disc ceramic capacitor (Reference: electronics-notes.com)
Multi-Layer Ceramic Capacitors (MLCC)
MLCCs are rectangular blocks composed of a blend of paraelectric and ferroelectric components layered with metal contacts and designed for surface mounting. More than 500 layers are present in the MLCCs, with a minimum layer thickness of about 0.5 microns. It is technologically possible to decrease the layer thickness while increasing capacitance in the same volume.

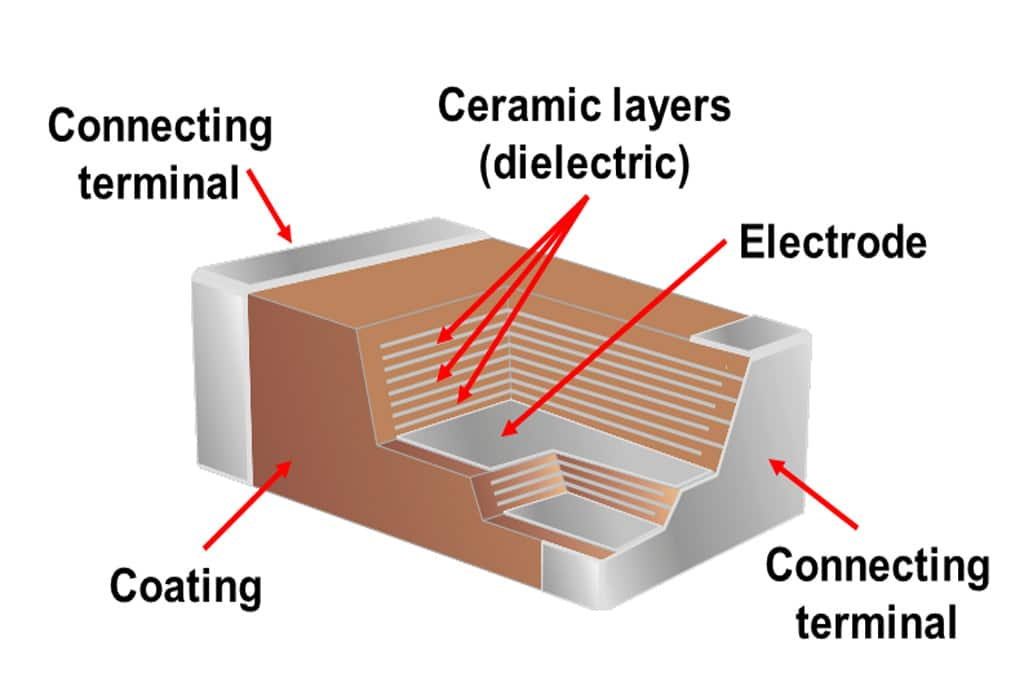

Structure of a multi-layer ceramic capacitor (Reference: passive-components.eu)
MLCC capacitors have a capacitance (C) that uses a plate capacitor formula with the number of layers increased.
In the equation above, ε represents dielectric permittivity; A stands for electrode surface area; n is the number of layers, and d shows the distance between the electrodes.
Lead-less Disc Ceramic Capacitors
Specially designed microwave ceramic capacitors fit in slots on PCBs.
Ceramic Dielectric Types
Contrary to tantalum and electrolytic capacitors, ceramic capacitors can be made from a variety of dielectric materials. Different dielectrics impart very different properties to capacitors. So, apart from selecting a ceramic capacitor, a second decision may also be required concerning which type of dielectric to use. Many ceramic capacitor dielectrics are mentioned in distributors’ lists, including C0G, NP0, X7R, Y5V, Z5U, and many more. The best type, however, needs further investigation.
Applications of Ceramic Capacitors
Ceramic capacitors have numerous applications, including:
Advantages of Ceramic Capacitors
Ceramic capacitors have the following advantages:
Disadvantages of Ceramic Capacitors
Below are some of the disadvantages of ceramic capacitors:
