Worm drive hose clamps are a type of hose clamp used to secure hoses onto fittings. They are commonly used in automotive and industrial applications, and They are known for their ease of use and effectiveness, making them a popular choice in a variety of industries. In this article, we will provide a comprehensive guide to worm drive hose clamps, including their design, function, installation,pros and cons, applications, and maintenance.

Design and Function:

Worm drive hose clamps consist of a band made from a flexible material such as galvanized steel or stainless steel, and a worm gear that tightens and loosens the clamp. The worm gear is turned by a screwdriver or a similar tool, which causes the clamp to tighten or loosen around the hose. The band is usually perforated to allow the gear to grip the clamp tightly.

Types of Worm Drive Hose Clamps-quick release duct clamps:

There are several types of worm drive hose clamps available, including standard, mini, and heavy-duty clamps.

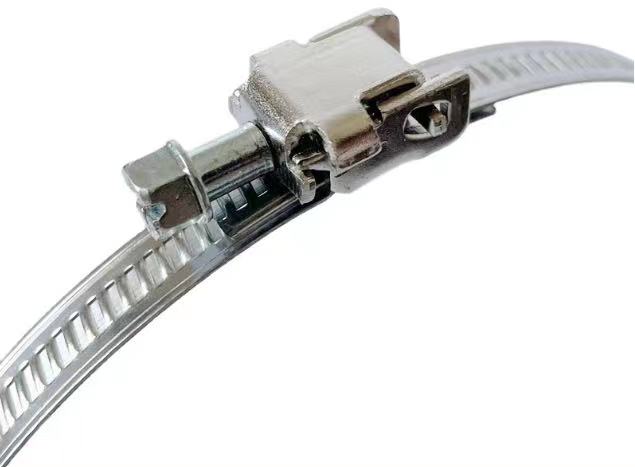

A quick release duct clamp, is a specialized type of worm drive hose clamp designed for use in HVAC ductwork systems. This type of clamp is used to secure flexible ducts to HVAC components such as air handlers, grilles, and diffusers.

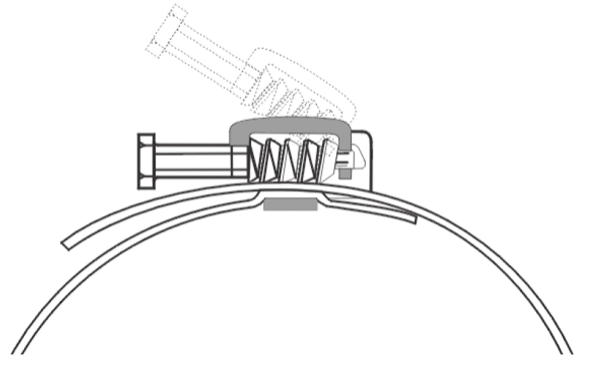

The design of the quick release worm drive duct clip allows for easy installation and removal of flexible ducts without the need for tools or additional equipment. The clamp consists of a band or strip of metal with a screw mechanism, similar to a standard worm drive hose clamp. However, unlike a standard clamp, the Quick Release Duct Clamp has a lever or release mechanism that can be used to quickly release the clamp, allowing the duct to be removed or repositioned as needed.

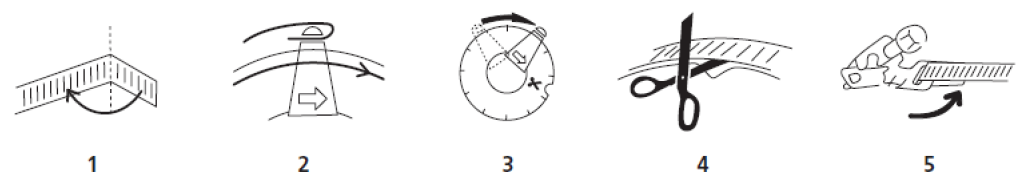

Installation guide of a quick release worm drive duct clip :

Begin by ensuring that the duct and HVAC component are clean and free of debris or obstructions.

Measure the diameter of the flexible ducting and select a Quick Release Worm Drive Duct Clip that is appropriate for the diameter of the duct.

Position the ducting onto the HVAC component and ensure that it is centered and aligned properly.

Slide the Quick Release Worm Drive Duct Clip onto the end of the duct and position it close to the HVAC component.

Tighten the worm drive screw on the clamp until it is snug, but not overly tight. Ensure that the clamp is evenly tightened around the duct.

Once the clamp is secure, use the lever or release mechanism on the Quick Release Worm Drive Duct Clip to loosen the clamp and release the duct as needed.

If necessary, adjust the position of the duct to ensure that it is properly aligned and centered on the HVAC component.

Once the duct is properly positioned, tighten the worm drive screw on the clamp to secure the duct in place.

Use the lever or release mechanism on the Quick Release Worm Drive Duct Clip to release the clamp and remove the duct as needed for maintenance or adjustments.

It is important to ensure that the Quick Release Worm Drive Duct Clip is the appropriate size and strength for the diameter and weight of the duct being secured. Additionally, regular inspection and maintenance of the ductwork and clamps can help ensure optimal system performance and safety.

The advantages of using a Quick Release Worm Drive Duct Clip include:

Easy installation and removal: The lever or release mechanism on the clamp allows for easy installation and removal of ductwork without the need for additional tools or equipment.

Time-saving: The ability to quickly release and reposition ductwork can save time and labor costs during installation and maintenance.

Secure hold: The worm drive design of the clamp ensures a secure hold on the duct, reducing the risk of air leaks or system inefficiencies.

Versatility: The Quick Release Worm Drive Duct Clip can be used with a variety of flexible duct materials, including aluminum, polyester, and PVC.

Applications:

Worm drive hose clamps are commonly used in a variety of industries, including automotive, industrial, and agricultural applications. They are also used in household plumbing and other applications. When selecting a Quick Release Worm Drive Duct Clip, it is important to ensure that the clamp is the appropriate size and strength for the duct being secured. Additionally, regular inspection and maintenance of the ductwork and clamps can help ensure optimal system performance and safety.

Maintenance:

To ensure that worm drive hose clamps remain in good working condition, they should be checked periodically to ensure they are tight and secure. They should also be replaced if they become damaged or corroded. Additionally, make sure to use the appropriate size clamp for the hose being secured.

Conclusion:

Worm drive hose clamps are a versatile and easy-to-use type of hose clamp that can be used in a wide range of applications. Understanding their design, function, installation, advantages and disadvantages, applications, and maintenance can help ensure they are used effectively and safely.
